ProVision 8ch Dynamic Hybrid Full 2MP PRO Kit

Specifications

• Video:
  Input: Dynamic Hybrid DVR Oriented: 8 Channel 4in1 HD Analog (BNC) + 1 Channel IP (Over Network)* NVR Oriented: 0 Channel 4in1 HD Analog (BNC) + 9 Channel IP (Over Network)* *Including all the HD Analog/IP variations available within the specified ranges. Output: VGA: 1280x1024/1024x768 HDMI: 1280x1024/1920x1080
• Recording:
  HD Analog – 0-8 Channels
  AHD/TVI: 1080P Lite
  Max 12/15FPS Per Channel
  Resolution: 960x1080 (PAL/NTSC)
  AHD/TVI: 720P
  Max 12/15FPS Per Channel
  Resolution: 1280x720 (PAL/NTSC)
  Analog: 960H
  Max 25/30FPS Per Channel
  Resolution: 960x575 (PAL) / 960x480 (NTSC)
  IP – 1-9 Channels
  IP: 1080P
  Max 25/30FPS Per Channel
  Resolution: 1920x1080 (PAL/NTSC)
• Playback:
  8 Channel Simultaneously (Local)
  4 Channel Simultaneously (Remote)
• Analytics:
  For IP Channels: Line Crossing, Sterile Area, Object Monitoring, Camera Tampering and Smart Search.
• Bandwidth:
  Incoming: 4-36Mbps
  Outgoing: 18Mbps
• Audio:
  Input: 1 Channel (RCA) + IP Camera inputs
  Output: 1 Channel (RCA) + IP Camera outputs
  2 Way audio
• Storage:
  1 x SATA (Up to 6TB)
• USB Port:
  2 x USB2.0
• Network: RJ-45: 100Mbps
• Alarm:
  Input: IP Cameras inputs only Output: IP Cameras outputs only
• PTZ / Keyboard:
  Protocol: CoC/Pelco D\P/Samsung/Visca (IP Over ONVIF)

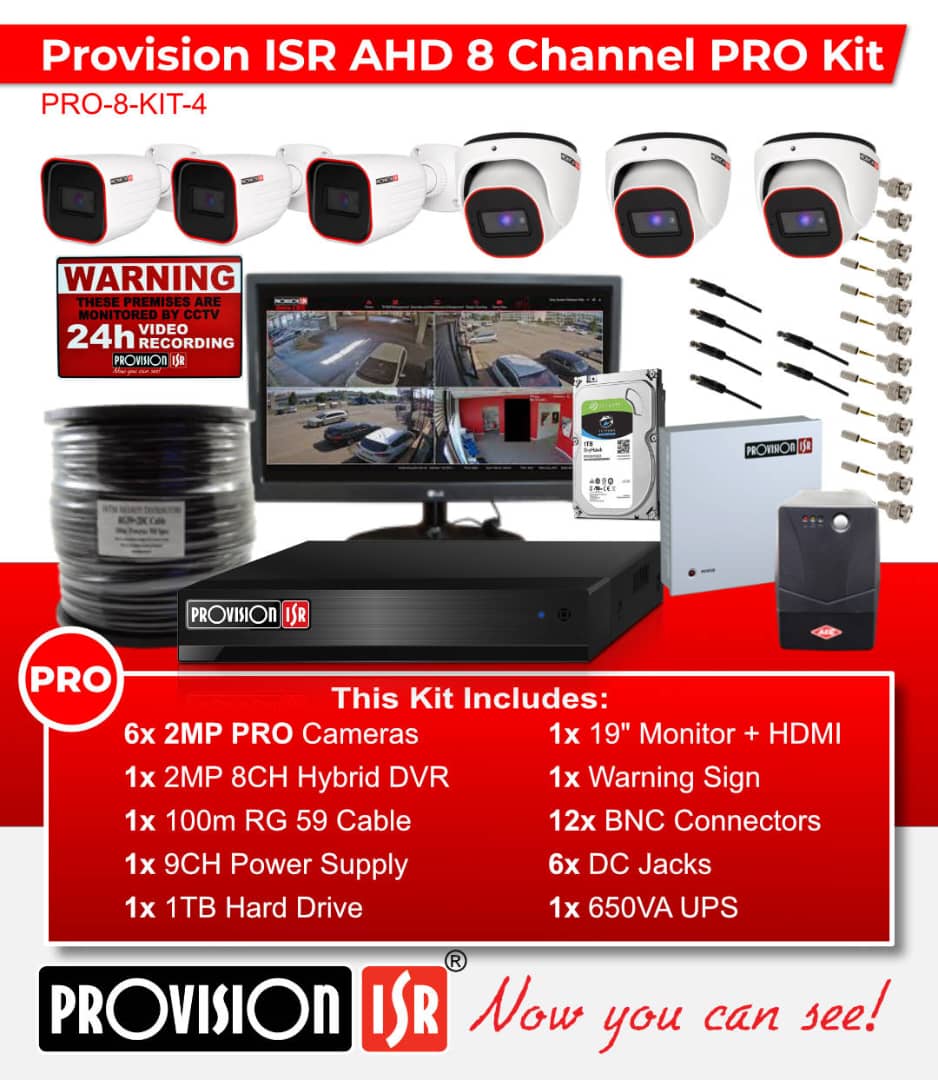

Kit Includes:

• 2MP 8ch AHD Plus 1ch IP Hybrid DVR

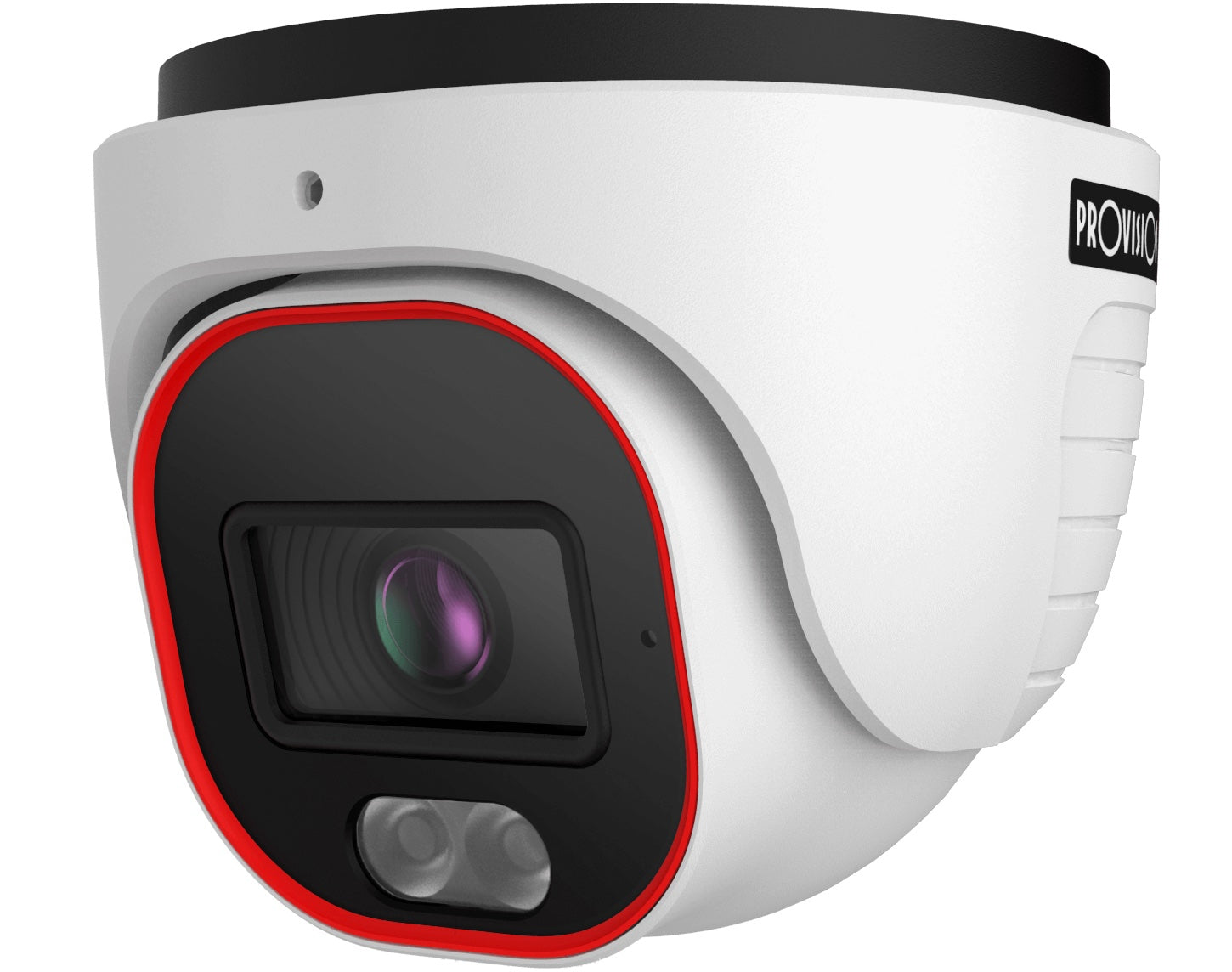

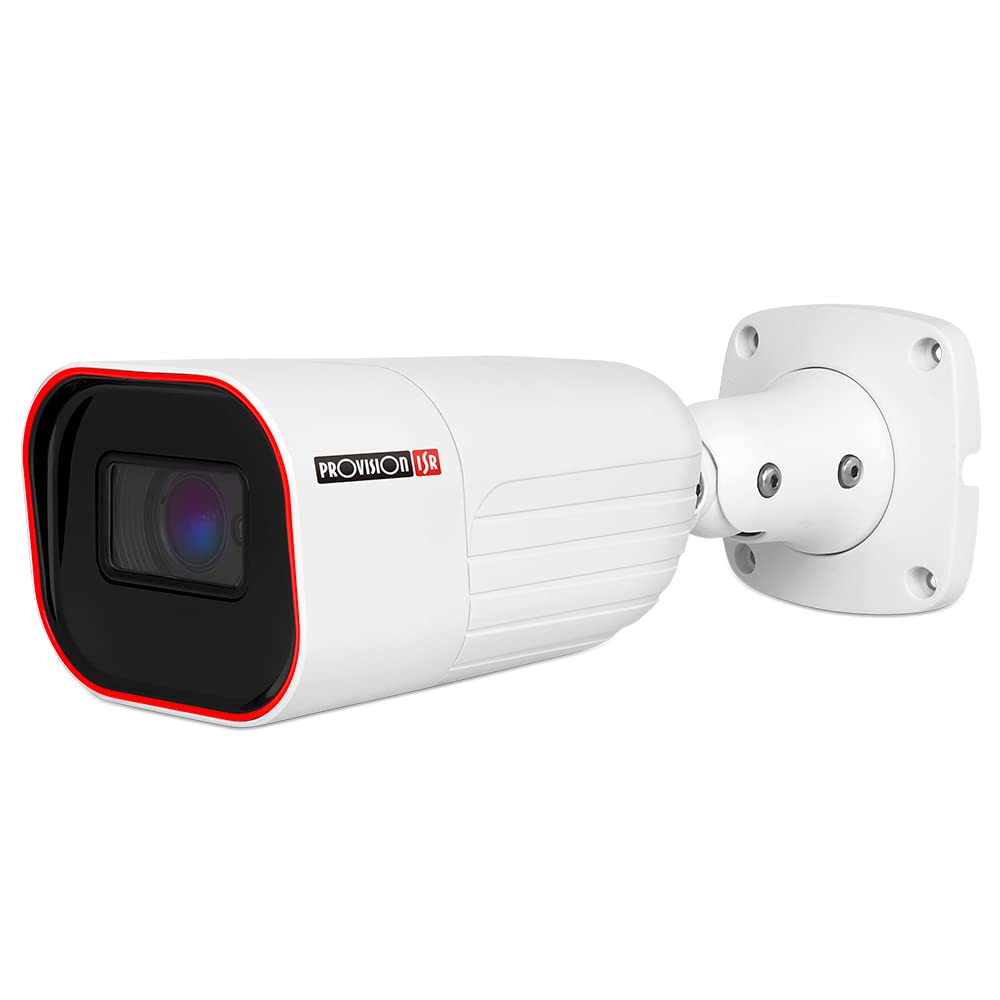

• 6 x 2MP PRO Camera (Bullet or Dome)
• 100m RG 59 Cable
• 9ch Power Supply
• 1TB Hard Drive
• 19" Monitor with HDMI
• 1 x Waring Sign
• 12 x BNC Connectors
• 6 x DC Jacks
• 650VA UPS
