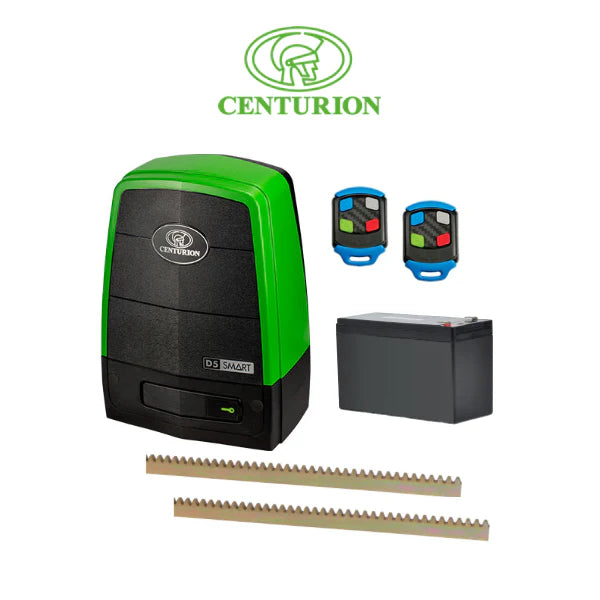

Centurion D5 Smart motor kit

The D5 SMART is a domestic and light-industrial operator designed to open and close sliding gates weighing up to 500kg.

Technical Specifications:

• Input voltage:   240V AC 50/60Hz
• Current consumption (mains): 320mA peak
• Dx12V Battery charger current output 1.8A @ 14.3V
• Maximum number of operations per day 150
• Duty cycle - Mains present: 50%
• Motor power supply: Battery-driven (1 X 12V)
• Current consumption (motor at rated load): 15A
• Input / Output sink currents (Max. accessory current draw)
• I/O 4 and I/O 5: 100mA (12V)
• Motor push force – starting: 30kgf
• Motor push force – rated: 17kgf
• Gate mass – maximum: 500kg
• Gate length – maximum: 20m
• Gate speed (varies with load)4 Maximum: Up to 24m/min
• Rated: Up to 19m/min
• Manual Override: Lockable with key release

Kit includes: D5 Smart gate motor, 2 x 4 button Nova Remotes, base plate and 4m steel rack
