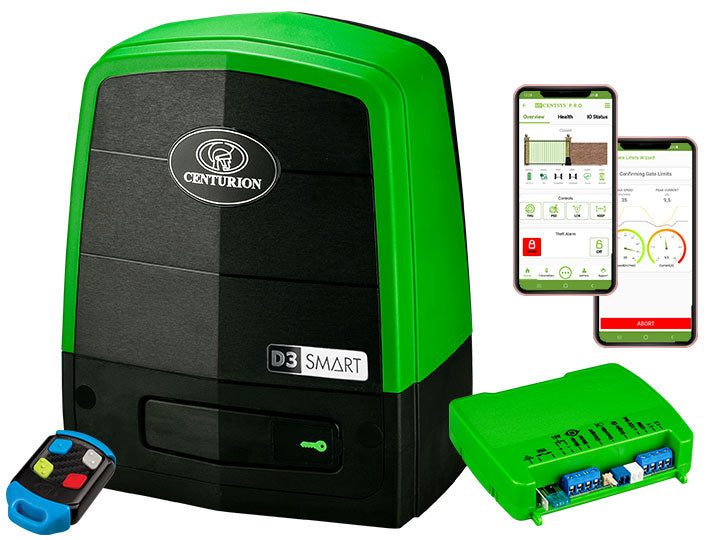

Centurion D3 Smart motor kit

The D3 SMΔRT 12V sliding gate operator is the perfect solution for domestic applications, offering reliability and advanced features at an affordable price point.

Designed for gates weighing up to 300kg, it combines practicality with user-friendly technology to ensure seamless installations and lasting performance.

Application: Domestic

Technical Specifications:

• Input voltage: 18V AC 50/60Hz
• 12V Battery charger current output 0.7A @ 14.3V
• Maximum number of operations per day: 15
• Duty cycle - Mains present: 25%
• Motor power supply Battery-driven: Standard Capacity - 1x12V
• Current consumption (motor at rated load): 11A
• Motor push force – starting: 18kgf
• Motor push force – rated: 12kgf
• Gate mass – maximum: 300kg
• Gate length – maximum: 10m
• Gate speed (varies with load)4 Maximum: Up to 24m/min Rated: Up to 21m/min

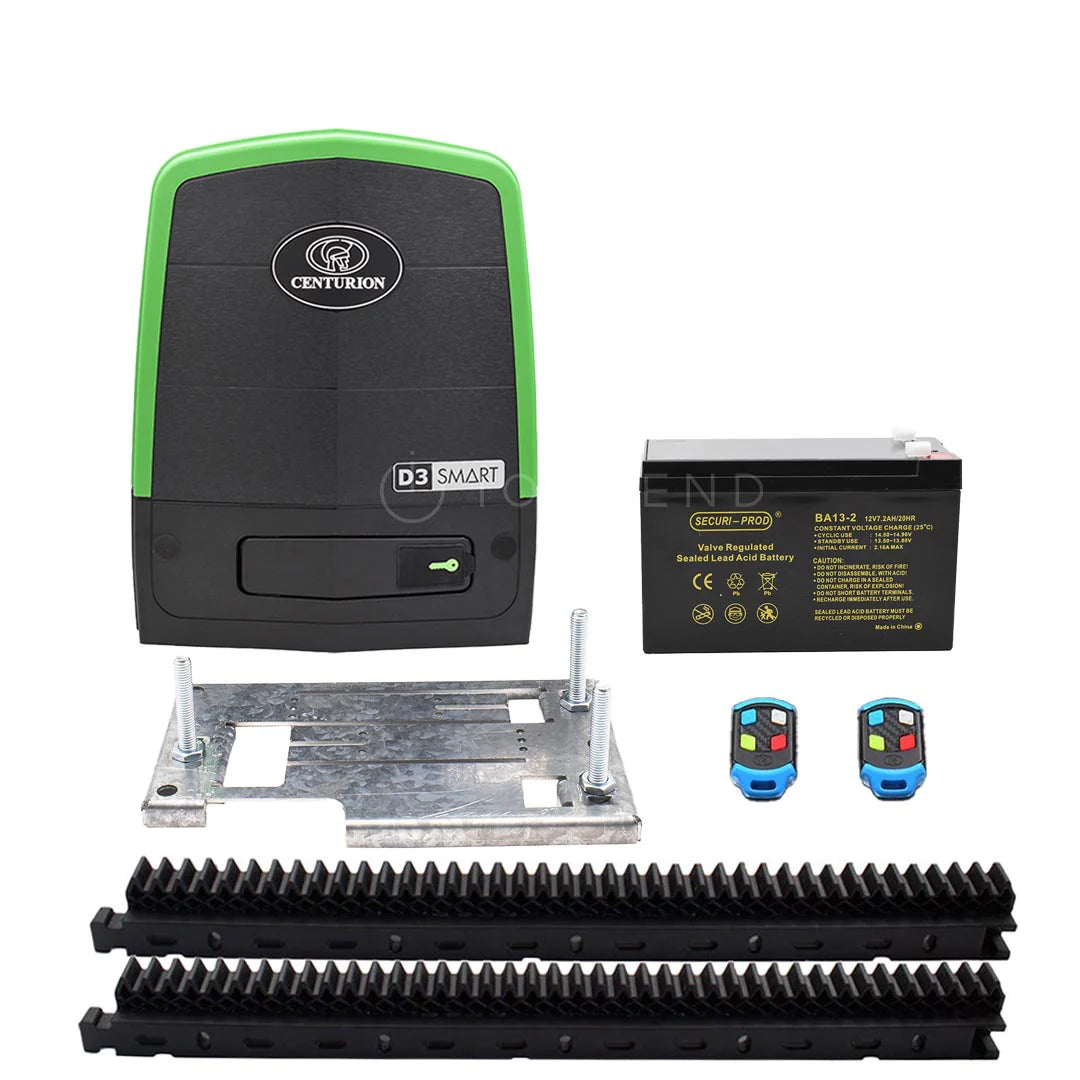

Kit includes: D3 Smart motor, 2 x 4 button Nova remotes, battery, base plate and 4m Razz Rack
