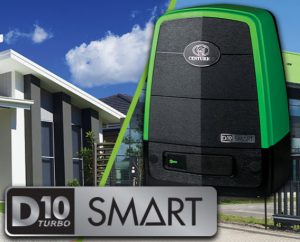

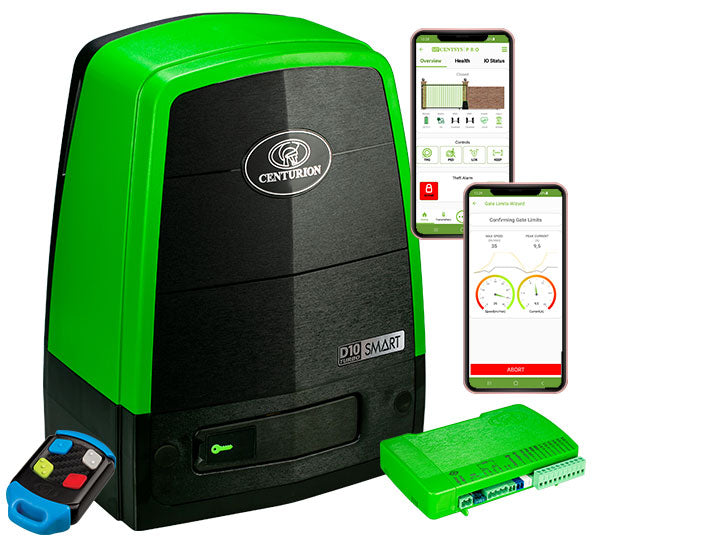

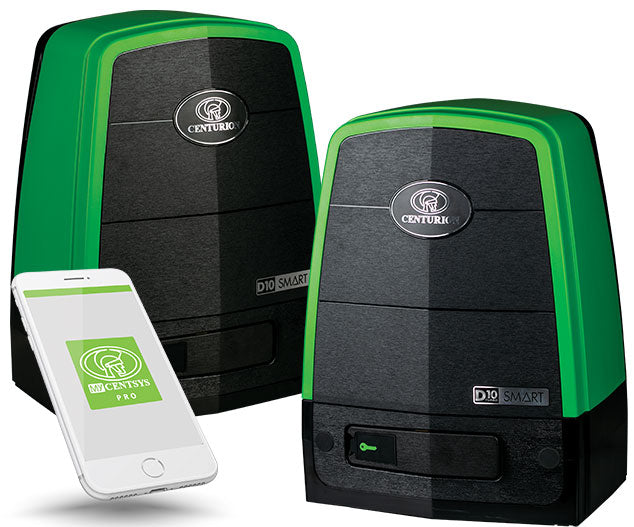

Centurion D10 Turbo Smart motor

The D10 SMΔRT is built to handle the demands of busy sites and heavy gates weighing up to 1000kg, performing up to 750 operations per day, and boasting a rugged die-cast aluminium gearbox built to withstand even the most demanding operating conditions.

Whether for a commercial property or industrial facility, you can rely on its performance to keep your gates moving smoothly all day, every day.

When it comes to automating large commercial or industrial gates, the D10 SMΔRT delivers the power, security, and convenience you need for high-traffic environments.

Application: Commercial/Industrial gates weighing up to 1000kg

Technical Data D10-SMART:

• Input voltage: 90V - 240V AC +/-10% @ 50Hz
• Current consumption (Mains): 250mA
• Battery charger current output: 1.8A
• Maximum number of operations per day average: 750
• Duty cycle with Mains Present: 25%
• Motor voltage: 24V DC
• Motor power supply: Battery-driven (Standard Capacity – 2X12V-7AHr)
• Current consumption (motor at rated load): 10A
• Inputs: 1-4: 100mA (12/24V)
•  Outputs: 5 and 6: 3A (12/24V) 10sec Pulse
• Motor push force – starting: 24kgf
• Motor push force – rated: 18kgf
• Gate mass – maximum: 250kg
• Gate length – maximum: 50m
• Gate speed (varies with load): Up to 45m/min
• Collision Sensing: Electronic
• Operating temperature range -15°C to +50°C
